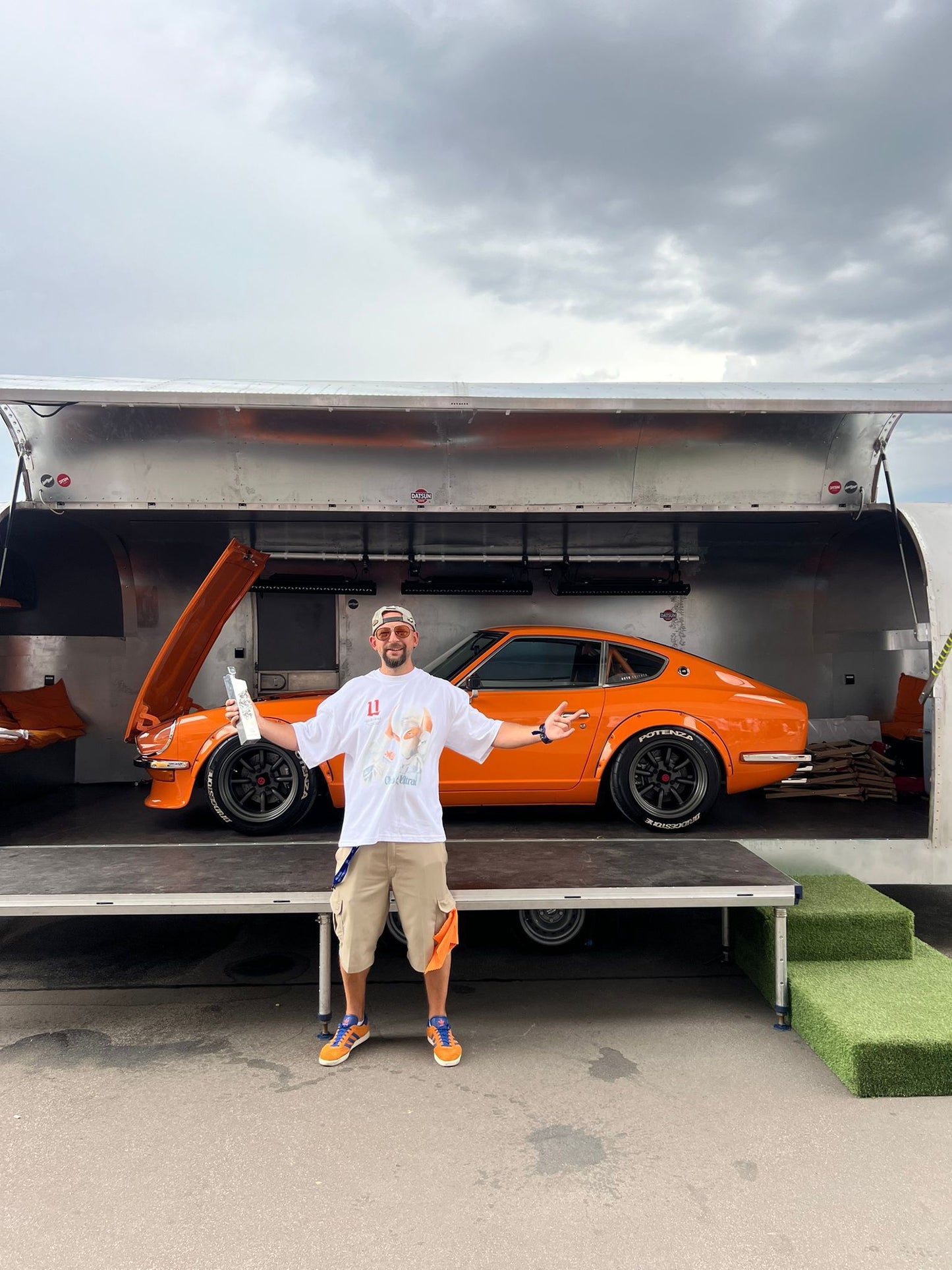

Datsun 240Z OrangeZ

Datsun 240Z OrangeZ

ORANGE Z Tribute

full NUT AND BEYOND BUILD !!!!!!

It was just a matter of time - to have another orange Z - and this one is Super special.

ive bought this one back in 2017 - in Sacramento.

it sat for long - after being soda blasted and epoxy coated.

later - around year 2019.

as seen on pics below - the body was - customized - to be something different.

"katana blade" was  fully removed, along wiper blades , corner lights , antenna and few other details.

one thing that's not seen at first glance - but gives superb proportions - rear wheel placement in the arch ( usually that's done - if at all - adjusting rear arms etc ) here we did redo the body - around the wheel - not the other, easy way around.

under the hood the list of  little mods - is crazy long - everything was shaved and smoothed out - tons of modifications that's not seen . Radiator is out of an S-chassis car - all rad support was cut out - and strengthened . all wiring is hidden away. brake lines and clutch lines all are rerouted and hidden. custom Carbs linkage acquired from my good friend Taka Sata - Kyushu House Taka - who did a full restoration on Mikuni 44s - on Mikuni intake manifold, finished with  Anodized Velocity Stacks from Techno Toy Tuning . Nissan valve cover - with a slight redo to it.                                                     Spark Plug Wires - in orange of course :) on 123 ignition - using our custom brackets - 3d printed - by the one and only Zulukuki - soon to be for sale in ALU - CNC'd.                   Alternator is upgraded as well - with my cnc'd wheel to work with Kameari Super Damper. Fujitsubo LegalisR exhaust sytem is there to shoot flames out !!!!



brief in & out summary :

L31e Rebello Stroker 274hp / 330 Nm

  • - fully nut and bolt restoration.
  • - painted in Custom solid Orange paint.
  • - all nuts and bolts, latches zink plated
  • - new windshield
  • - all new weatherstripping

exterior :

  • - new EU bumpers front and rear
  • - frp air dam
  • - JDM ZG Fender flares
  • - Evasive Motorsport magnesium mirrors
  • - RS Watanabe R-type 16x9 wheels
  • - Bridgestone tires
  • - new dimmed tail lights
  • - OEM emblems
  • - carbon tail lights panel
  • - Chrome Headlights covers
  • - new door handles
  • - new locks

interior :

  • - rebuilt dashboard
  • - all new interior - with carpeting etc.
  • - recaro seats in Spectrum fabrics
  • - custom 3d Printed headrest interts
  • - 240z series 1restored steering wheel
  • - all new seatbelsts
  • - DATSMO pedals rubbers
  • - custom Speedhut gauges
  • - carbon center console
  • - DTSN EUROPE powersteering

drivetrain :

  • - L31e Rebello Engine
  • - Nissan 200sx s14 transmission
  • - fidanza lightened flywheel
  • - competition clutch
  • - custom Nissan Valve cover
  • - Kyusha House Taka Oil cap
  • - new water pump
  • - ARP head bolts
  • - 123 ignition
  • - fujitsubo exhaust manifold
  • - fujitsubo mid section
  • - fujitsubo back box
  • - custom fuel tank
  • - Nismo fuel pump
  • - Mikuni 44 Carbs - rebuilt by Kyushu House Taka
  • - Mikuni intake manifold
  • - Techno Toy tuning velocity stacks
  • - DTSN EUROPE custom wire brackets
  • - orange ignition wires
  • - SPAL cooling
  • - oil catch can
  • - Techno Toy Tuning Adjustable arms
  • - Apex Adjustable arms
  • - Polybushing all around
  • - new OEM diff mount
  • - silver project engine mounts
  • - techno toy tuning transmission mount
  • - custom top mount covers
  • - techno toy tuning top mounts
  • - Stance Coliovers
  • - Willwood front brakes
  • - ford rear brakes
  • - Hel braided brake lines
  • - all new wheel bearing front ad rear
  • - techno toy diff mounts
  • - R180 LSD subaru diff - 4.4ration
  • - DTSN EUROPE custom stub axles
  • - CV axle conersion
  • - custom driveshaft
  • - DTSN EUROPE roll bar
